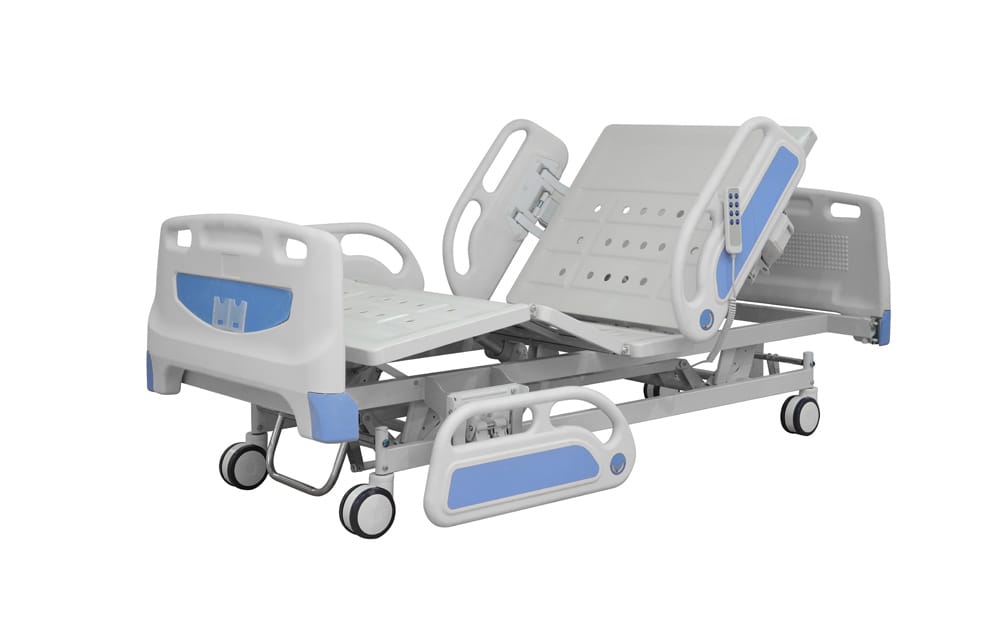

The 2 Function Electric Hospital Bed with Backrest & Leg Adjustment is designed for hospitals, nursing homes, rehabilitation centers, and home healthcare environments. It provides electric control of backrest and leg positioning to improve patient comfort and reduce caregiver workload.

Built with a reinforced carbon steel structure and certified motor system, this electric hospital bed ensures stable performance, safety, and long-term durability.

Electric Adjustment Functions

Backrest adjustment: 0°–75°
Leg rest adjustment: 0°–35°

The electric system enables smooth and precise positioning for resting, feeding, rehabilitation, and daily nursing care.

Heavy-Duty Bed Structure

• Bed frame: 40×80×1.0mm carbon steel rectangular tube
• Bed legs: 50×50×1.0mm carbon steel tube
• Bed panel: 0.8mm ventilated cold-rolled steel plate
• Static load capacity: 250kg
• Dynamic load capacity: 150kg

Reinforced structure ensures stability and reduces pressure on the motor system.

Electric Motor System

• Third-party certified motor system
• Low noise operation (<45dB)
• Waterproof and dustproof protection
• Stable and smooth lifting performance
• Voltage: 110–220V, 50Hz

Bed Surface Design

• Multi-hole ventilated steel surface
• Anti-slip structure design
• Strong load-bearing support
• Prevents mattress displacement
• Improves airflow and comfort

Headboard & Footboard

• ABS one-piece injection molded structure
• Anti-collision wheel protection design
• Tool-free quick disassembly
• Transparent patient card holder
• Durable and impact-resistant

Safety Side Rails

Full-length aluminum alloy safety rails ensure patient protection.

• Hardened surface treatment
• Five support columns
• Foldable flat design
• Double-button locking system
• Anti-pinch protection
• Mattress displacement prevention

Mattress System

• 6cm medical mattress included
• 4cm coconut coir + 2cm high-density sponge
• Waterproof medical canvas cover
• Breathable and comfortable
• Zipper design for easy cleaning
• Green or blue optional

Mobility System

• 125mm silent medical castors
• Central locking brake system
• Waterproof and dustproof design
• Smooth and stable movement
• Large contact surface for safety

Surface Treatment

• Triple shot blasting rust removal
• Electrostatic antibacterial powder coating
• High-temperature curing at 260°C
• Corrosion-resistant finish
• Easy-clean medical surface

Additional Features

• Infusion stand sockets on bed frame
• ABS dining table included
• Stable electric control system
• Medical-grade safety structure

Product Specifications

Applications

• Hospitals and clinics
• Nursing homes
• Rehabilitation centers
• Home patient care

Standard Configuration

• Electric hospital bed frame
• ABS headboard & footboard
• Electric motor system
• Safety side rails
• 6cm medical mattress
• Silent castors with brake
• ABS dining table
• Infusion stand sockets

FAQ

What functions does this electric hospital bed support?
It supports electric backrest and leg adjustment for patient comfort and nursing care.

Is the motor system safe?
Yes, it uses certified low-noise motors with waterproof and dustproof protection.

What is the load capacity?
The bed supports up to 250kg static load and 150kg dynamic load.

Is the mattress included?
Yes, a 6cm medical-grade mattress is included.

Can it be used at home?
Yes, it is suitable for hospitals, nursing homes, rehabilitation centers, and home care environments.
